TECMATE CHARGER SOLAR 60W

SOLAR CHARGER 60W

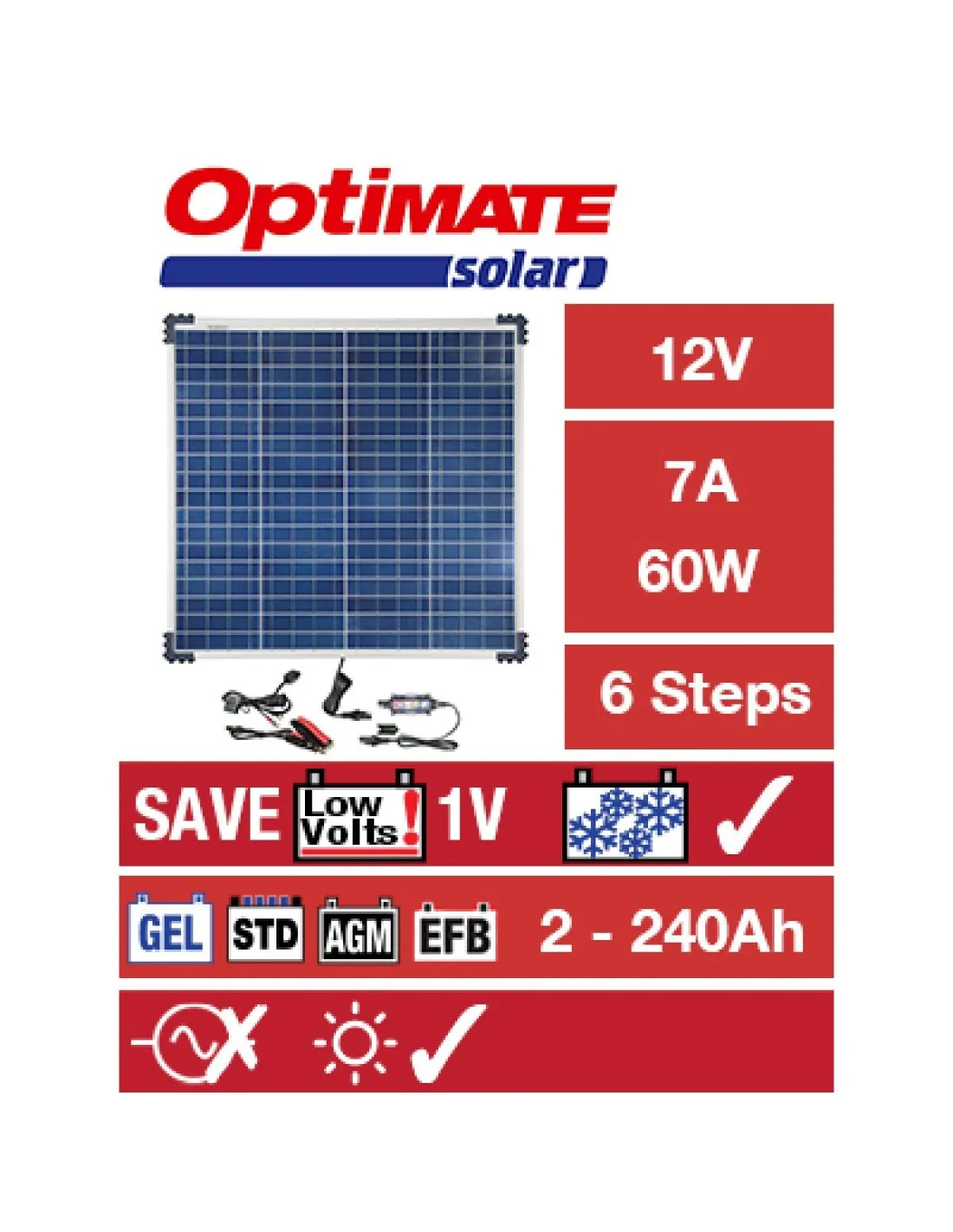

OptiMATE Solar 12 V monitoring and charging system, the intelligent 24-7 solar powered solution for your battery.

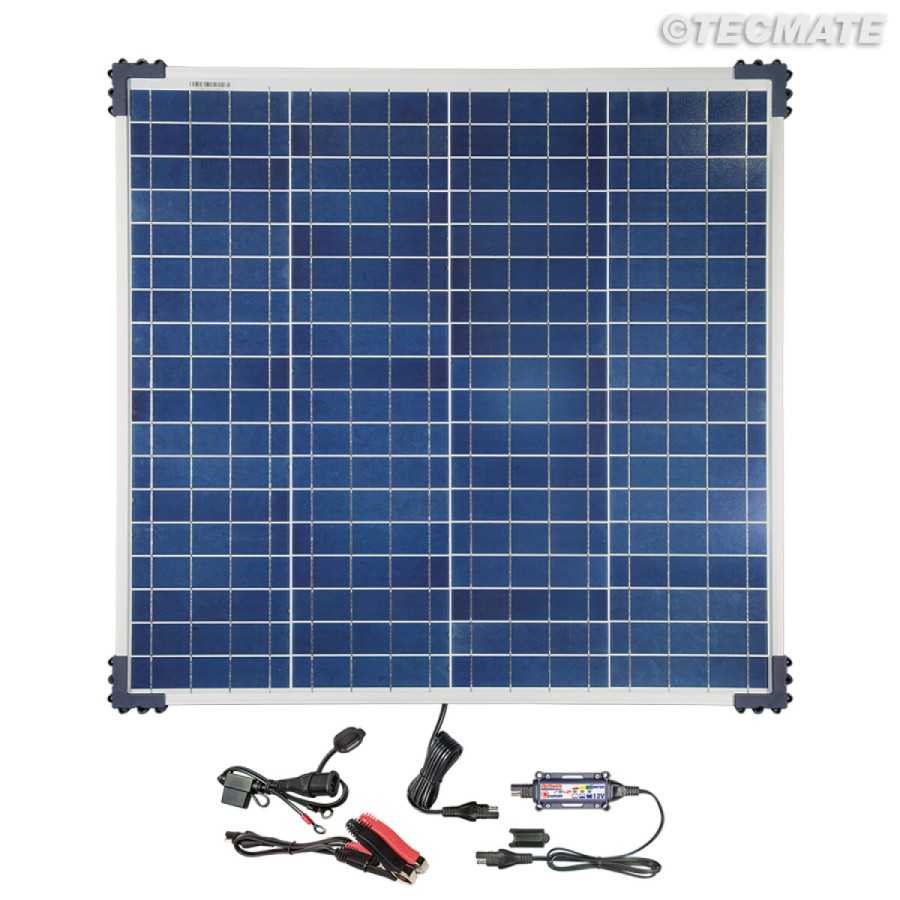

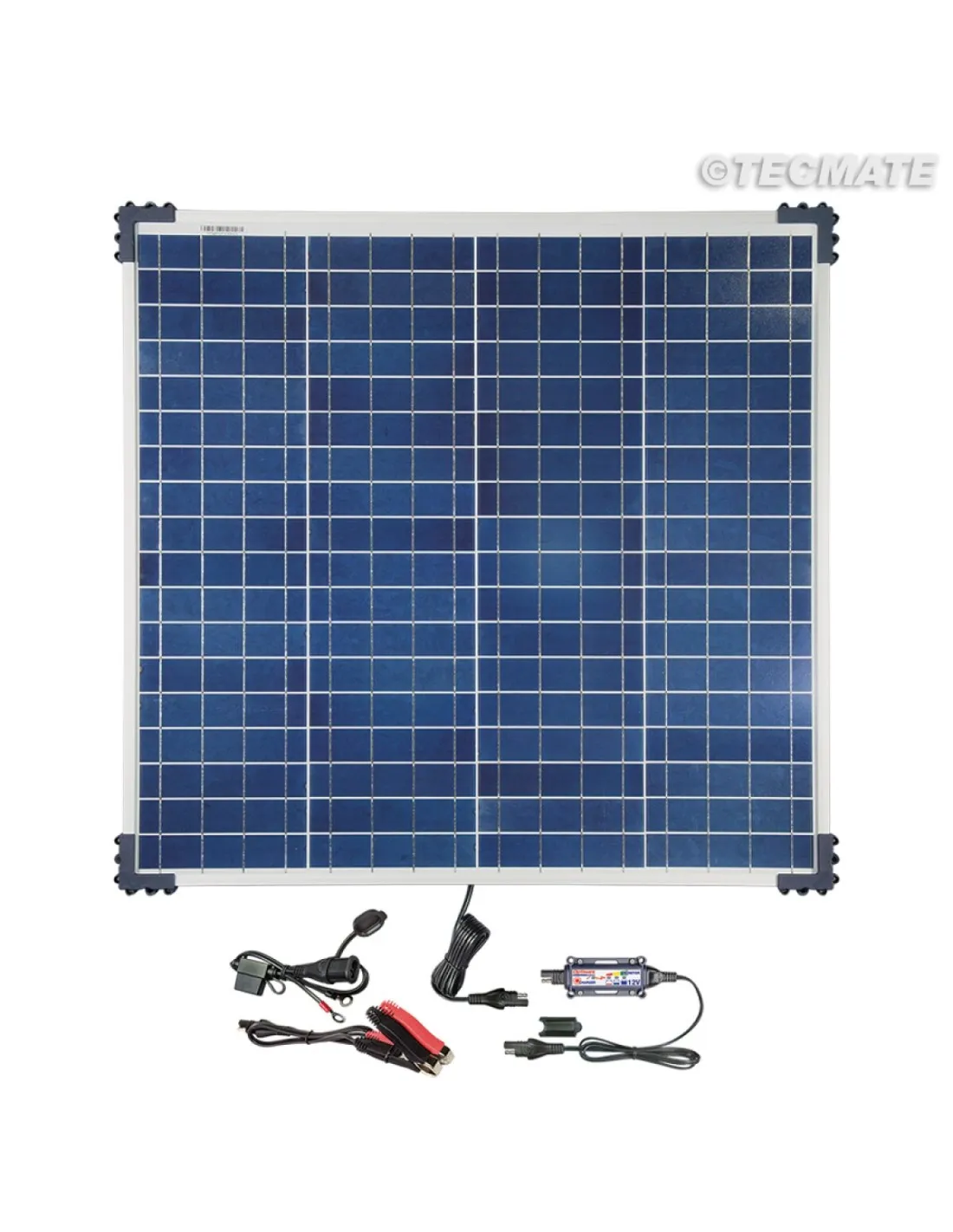

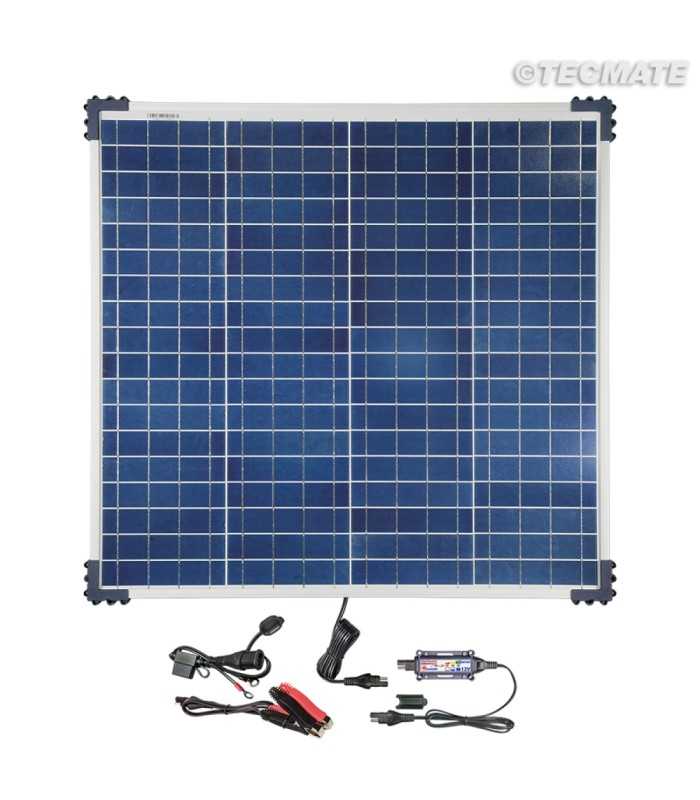

The intelligent OptiMate Solar system includes a 60-watt waterproof solar panel and a combined charge and monitoring controller that charges and maintains a 12V battery during the day, monitoring and displaying the charge status of the

The solar panel's broad spectrum polycrystalline technology allows it to generate power even in low light conditions, a power that the OptiMate controller converts into high-current pulses, highly efficient for charging

At night the smart controller transforms into a battery monitoring device that provides battery status information every 3 seconds through the easy-to-read 3-LED panel.

Thanks to its pulse action, it allows you to preserve even flat batteries of only 1 V.

Fast charging is guaranteed by the intelligent charging command that selects pulsed or continuous charging depending on the intensity of sunlight.

Intelligent maintenance continues the next day if the battery has held its charge overnight, otherwise the program returns to the OPTIMIZE step.

Battery status is displayed every 3 seconds. Ready indication for standard and high performance AGM batteries. During monitoring mode it consumes less than 0.5 mA.

It automatically switches to CHARGE mode as soon as solar energy is sufficient.

The OptiMate charge and monitoring controller is separate from the solar panel and can be positioned close to the vehicle or battery so you can easily follow the charging and maintenance progress.

The solar panel must be mounted and tilted to receive direct sunlight.

The range / distance between the battery and the panel is 315cm / 124 ''.

To increase this, use the OptiMate O-03, O-13 or O-23 cable extensions and insert them between the solar panel and the OptiMate charge and monitoring controller.

(EN) External dimensions, including corner mounting brackets: Width = 65.9cm / 16 7/8 "Height = 68.6cm / 27" Depth = 3.3cm / 1 1/4 "

Power of 60 watts (max)

12 V nominal, 22 V maximum.

For outdoor environments.

Waterproof aluminum construction with 4 mounting brackets, 200cm / 80 ”output cable with SAE connector.

OptimMate charge-monitoring controller:

5A from solar panel of 60W (average current max), pulse current 3-5A

For use indoors and outdoors (minimum temperature:

4 ° F /

20 ° C).

Low voltage start of 1V

Ideal for standard, AGM and GEL 12 V batteries with a capacity of 2-240 Ah.

Connection 15 - 22V

Waterproof charge controller case.

Waterproof battery cable, standard battery clamp set and 60W solar panel

No danger of overload. It does not pose any risk to the electronic components of the vehicle. No spark. Ideal for long-term battery maintenance. Automatic shutdown in case of short circuit or disconnected battery
