Motogadget mo.view Blade

Motogadget now exclusively presents its glassless mirror series mo.view. The special feature of this motorcycle mirror is the patented mirror surface, which is worked directly into the metal of the body. The Aluminium itself is the mirror surface!

A weightless design without edge and frame is possible and the mirror body itself becomes very thin and light.

Shattered glass or fallen out glass are simply not possible!

The convex mirror surface is produced in flycutting by means of diamond tools on ultra-precision machines. It is then made resistant to oxidation, corrosion and abrasion by a complex plasma coating process in a vacuum.

The mirror body, mirror arm and the clamping for the handlebar end are milled on CNC machines from solid aluminium and anodized to a high quality. All screws are made of stainless steel. The precise ball joint allows a comfortable and very stable adjustment of the mirror.

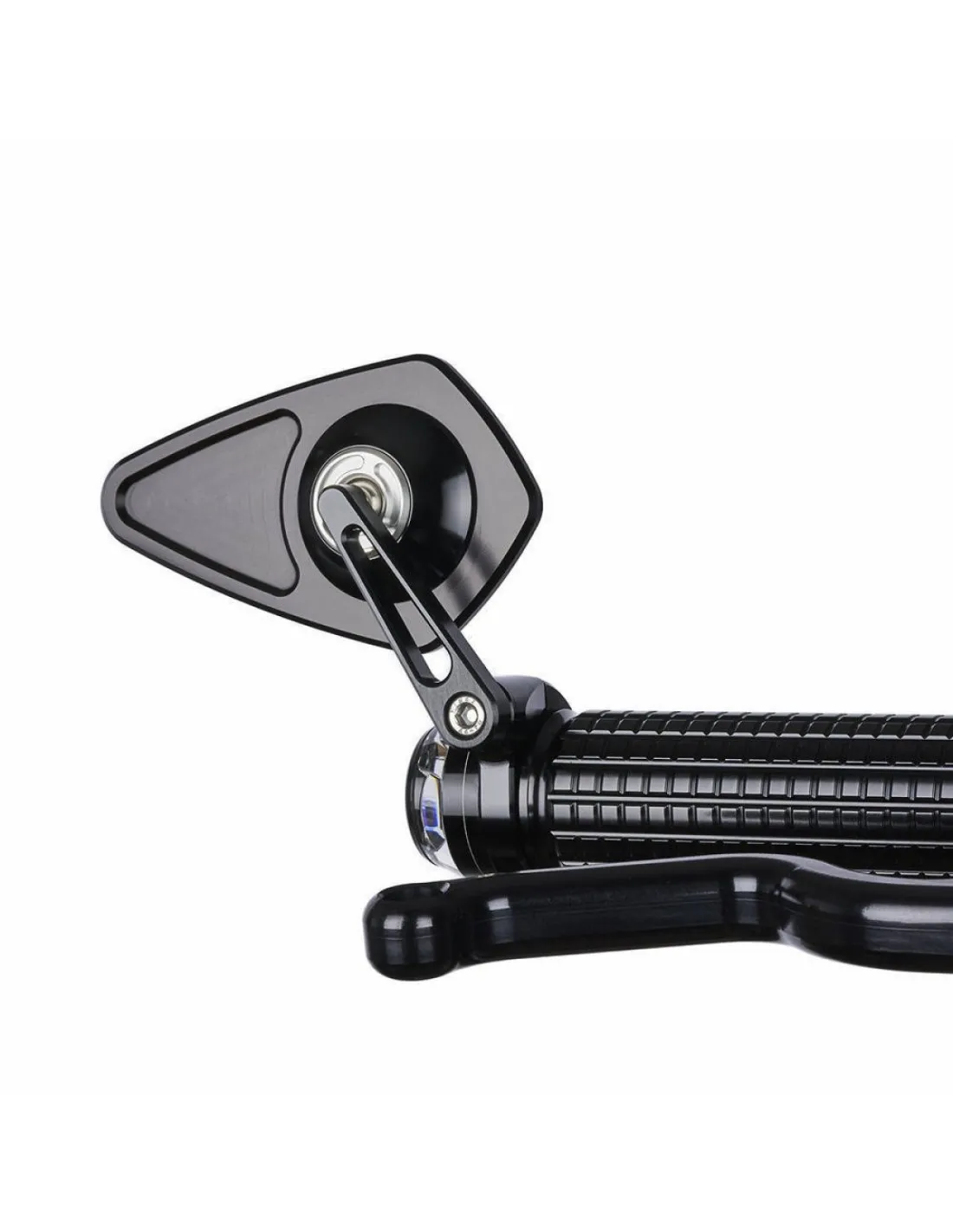

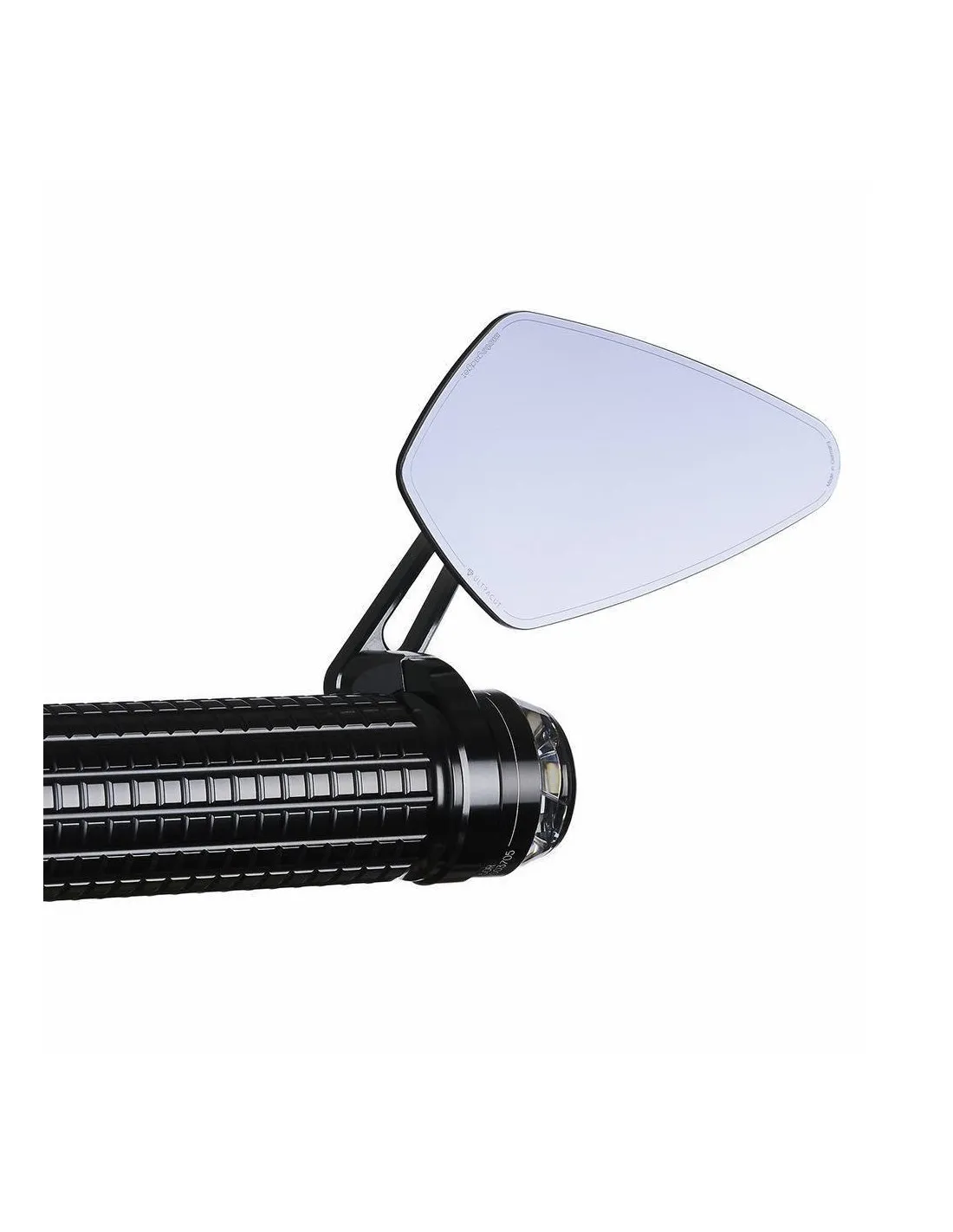

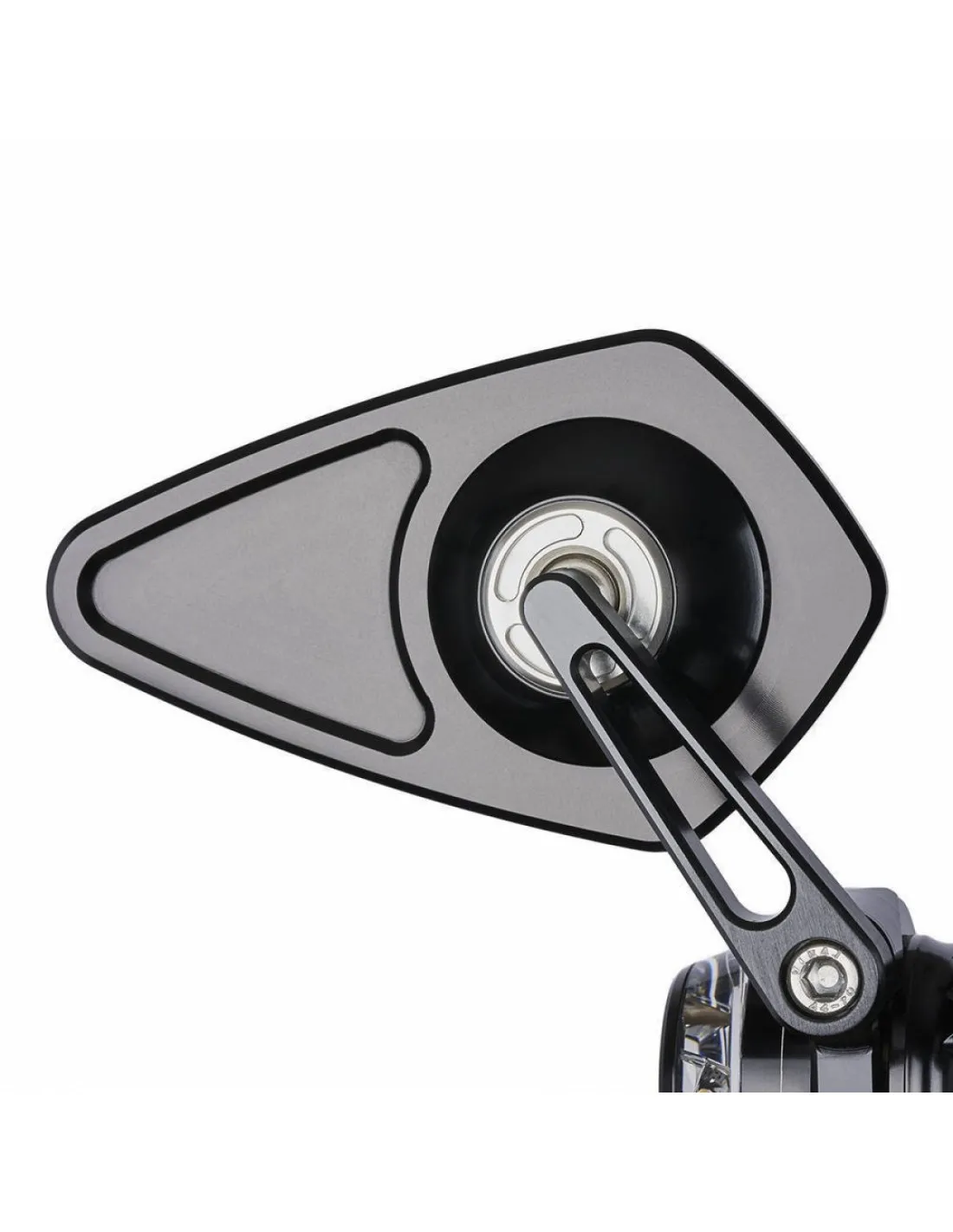

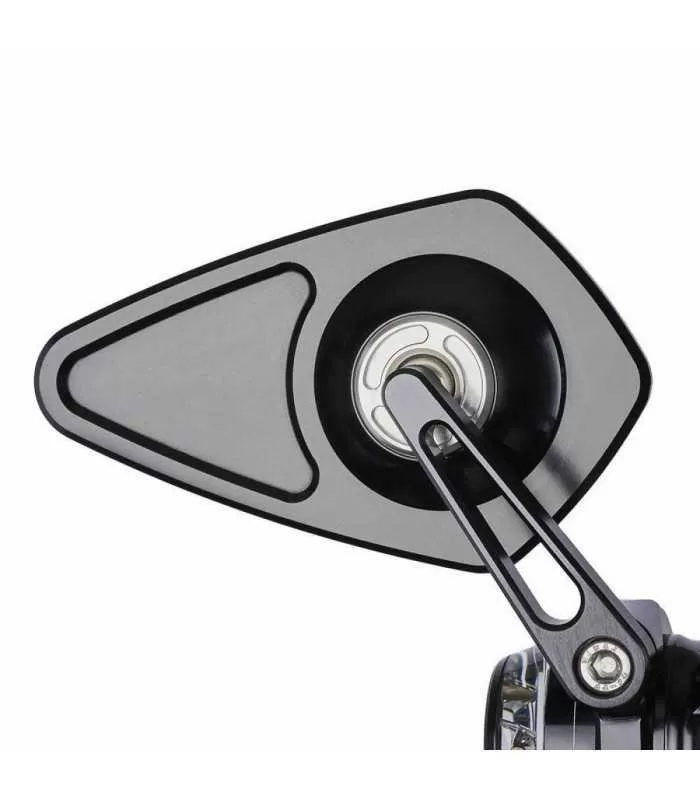

mo.view blade

The handle bar end mirror mo.view blade is very small, reduced and fits perfectly to our bar end indicators and the grip mo.grip as well as the push button controls mo.switch and mo.switch mini. It can be mounted above or below the handlebars. The mirror is suitable for the right and left side. It is mounted directly on the handle bar end.

Note

The size of the mirror surface of the mo.view blade does not correspond to the EU law. Therefore it is not approved according to ECE.

Price per single piece.

Specifications and features

Dimensions

Width of mirror body: 100 mm

Height of mirror body: 60 mm

Thickness of the mirror body without ball head: 4 mm

Lenght of the stem: 61 mm

Inner diameter of the clamp: for 22 mm und 1 inch handle bar

Clamping width: 8 mm

Weight: 94 g

Scope of delivery

Rear view mirror mo.view blade with stem and clamp
