Motogadget MO-LOCK DIGITAL IGNITION LOCK

The mo.lock is a contact free digital ignition lock with RFID technology and substitutes mechanical ignition locks or their electrical switching feature respectively.

The associated digital key/transponder only has to be approached to the mo.lock (switching distance approx. 20-40 mm) and the ignition is switched on or off completely contact free.

The mo.lock is based on the latest RFID technology (Radio Frequency Identification) and therefore, unlike e.g. radio remote controls, tamper-proof. Each key/transponder has a unique digital code.

The mo.lock can be actuated with the correct digital code only.  Key/transponder and mo.lock are absolutely free of mechanical wear.

The mo.lock switches automotive relays with a possible load of up to 40 A - sufficient power for every on-board system.

The hidden mounting of the small mo.lock, covered by non-metallic parts like e.g. a plastic side panel, permits completely removing the mechanic ignition lock. Clean look and various design possibilities are guaranteed - especially for custom bikes!

The available option 'Glass Tube' is so small (3 x 13 mm) that it can be sewn into the glove. Please note the reduced switching distance (about 5-10 mm) of the Glass Tube transponder. The 2 included standard keys (teardrop shape) are key fob sized.

All keys/transponders are available as a replacement 'key blank' and can be 'taught' to the desired mo.lock.

NOTE: We do not recommend using the mo.lock combined with immobilizers! Contact your dealer/manufacturer for informations about the possible deactivation of the immobilizer.

RFID technology is tamper-resistant

Each key has a unique code

The key first activates the mo.lock without touching it and then, via the relay, the entire on-board system

Neither key nor mo.lock suffer from mechanical wear

The key requires no battery - failsafe

No overload or scorched pins possible due to indirect switching via the 40 A main relay

The mo.lock is very compact an can be mounted hidden in many places

Water tight and vibration resistant because of the moulded-in construction

Depending on the model, key sizes range from very small (key fob sized) to tiny (glass vial) and may be integrated into other objects like gloves, clothing, pendants (NON-METALLIC!) etc.

Keys can be easily purchased and 'learned' to any mo.lock - your integrated locksmith

A switching distance of 4 - 5 cm ensures convenient switching while excluding the possibility of accidental engagement

An integrated LED shows the status of the mo.lock while mounting, connecting and 'teaching' new keys

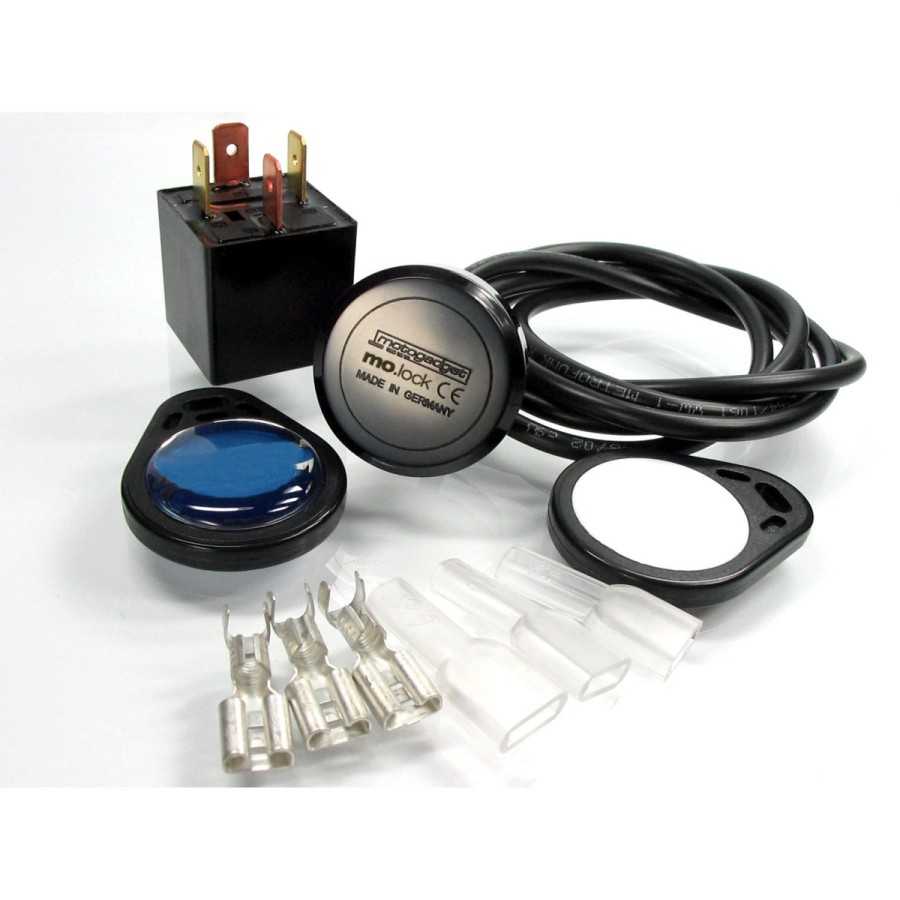

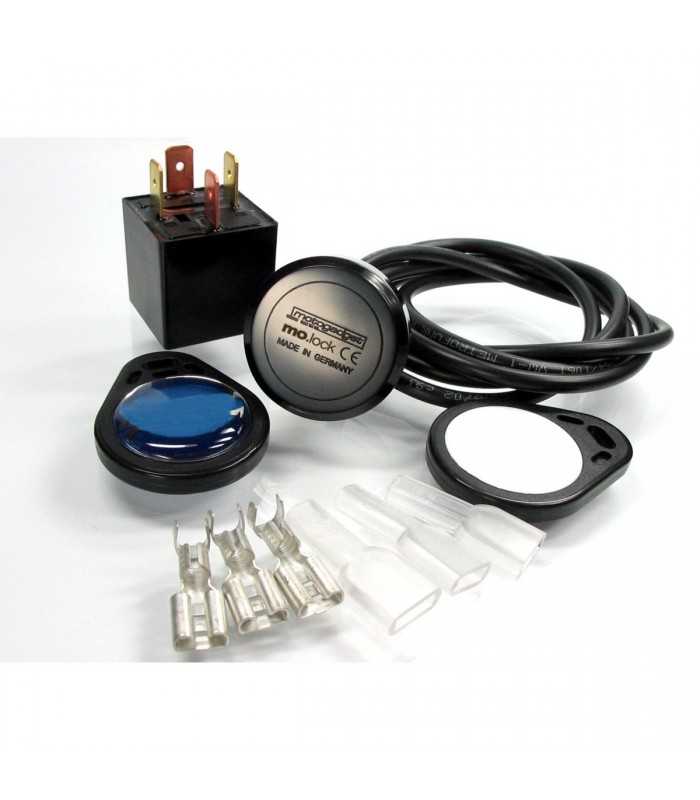

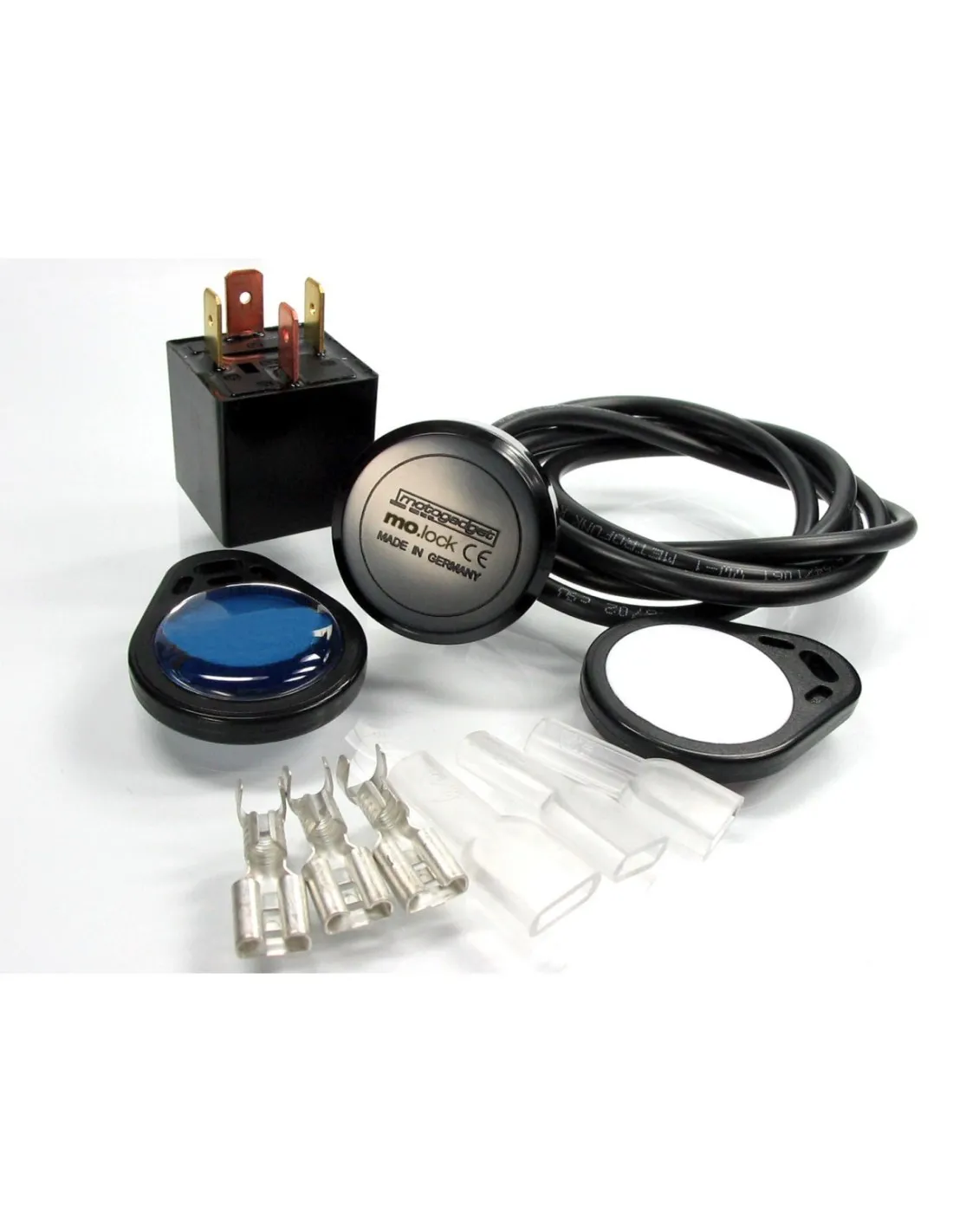

mo.lock with approx. 50 cm connector cable

1 user key and 1 master key (teardrop shape)

1 automotive relay 12V/40A

4 flat pins with isolating sleeves

Connector

Removable fuse

Detailed installation and operating instructions
